Handwritten objects
The pen tool lets you draw freely on the field. Unlike other objects, handwritten lines cannot be moved or recolored after they are drawn.
Drawing by hand
Pen settings

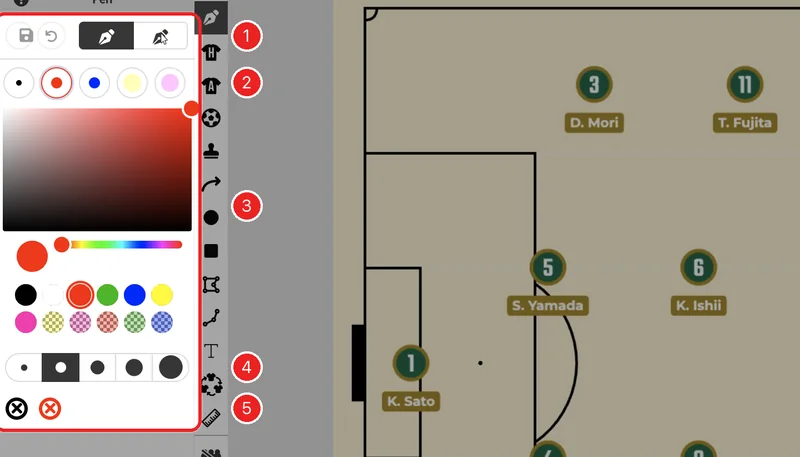

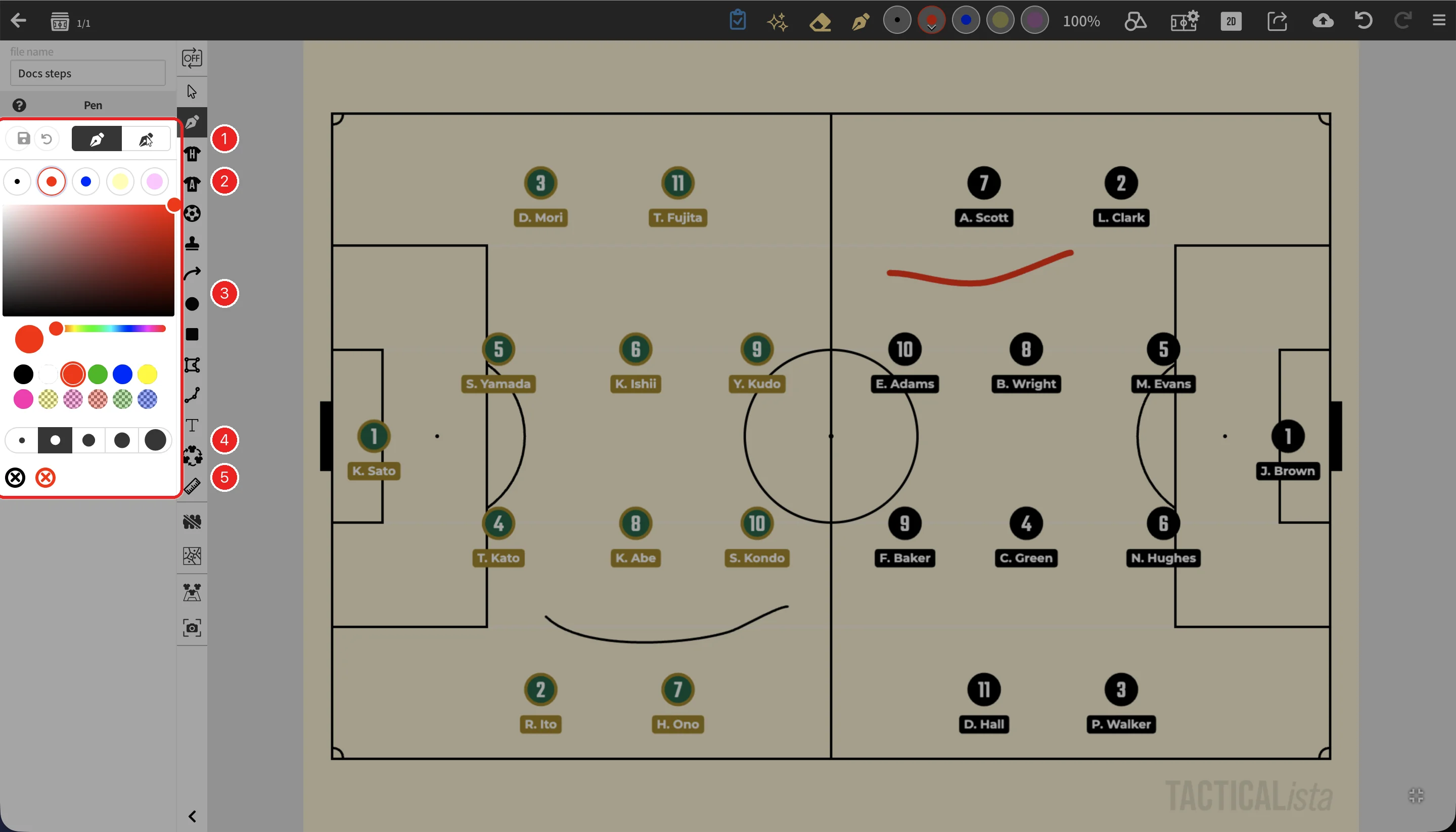

When you choose the pen tool, the panel shows the pen settings.
| No. | Item | Description |
|---|---|---|
| 1 | Save and reset / Pen mode | From the left: "Save current pen set", "Reset pen set" (back to the original combinations), "Only pen tool", and "Pen tool and selection tool". Saving pen sets is available on the Basic plan |
| 2 | Pen sets | Keep up to five color and width combinations and switch between them |
| 3 | Color | The color of the selected pen set. You can also pick from the swatches below |
| 4 | Width | The width of the selected pen set (five levels) |
| 5 | Delete by color | An X in each color you have drawn with. Press it to delete all handwritten lines in that color |
Saved pen sets are stored in the cloud and are available the next time you use the app.
Erasing handwritten lines

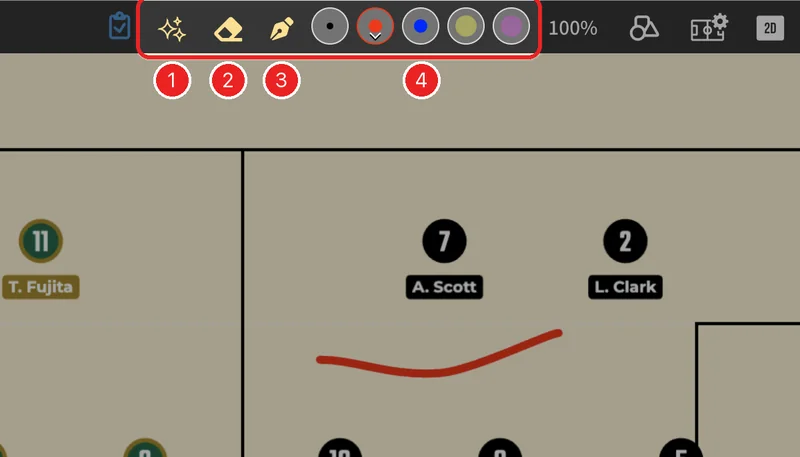

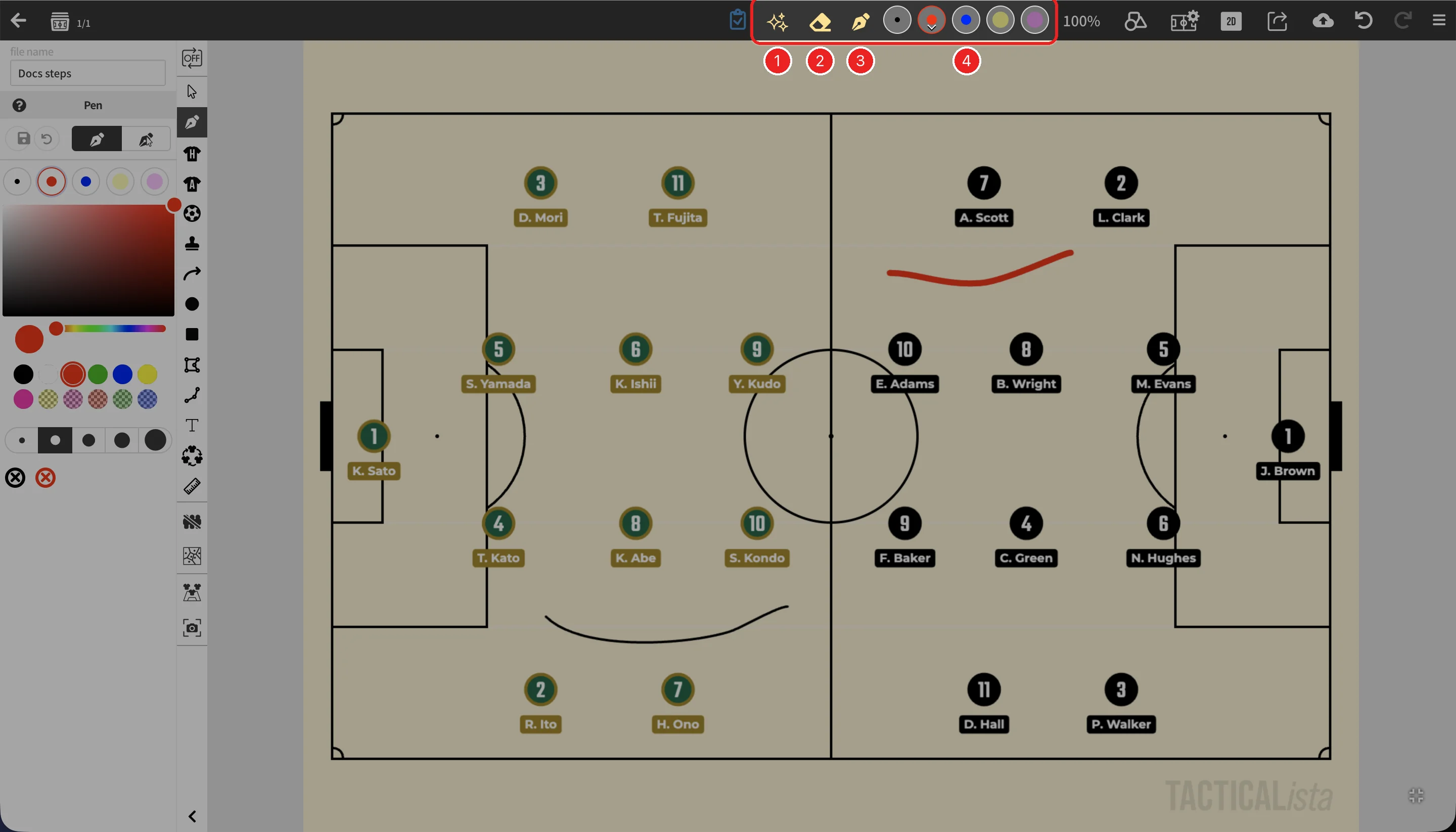

While there are handwritten lines on the field, erase buttons appear in the header.
| No. | Button | Action |
|---|---|---|
| 1 | Deletes all handwritten lines on the field | |
| 2 | Eraser mode. Trace over a handwritten line to erase it | |
| 3 | Switches the pen mode (see below) | |
| 4 | Pen sets | Switches the pen set |
Switching the pen mode
There are two pen modes: "Only pen tool" , which only draws, and "Pen tool and selection tool" , which also lets you select and move objects while drawing. Switch with the buttons at the top of the panel or in the header.
