Getting Started

What is Tacticalista?

Tacticalista is a football tactical board web application. It supports 11-a-side football, 8-a-side football, and futsal, as well as custom fields where you set the pitch dimensions (10 to 150m) and the number of players (2 to 11).
It works in PC, tablet, and smartphone browsers, and the data saved in the cloud can be accessed from any device.

The interface, designed specifically for football diagrams, lets you create tactics boards intuitively. Boards can be checked in the 3D view and exported as video through animation.

Create an account

A Google account is required to use Tacticalista; if you do not have a Google account, please create a Google account.
We do not provide any login method other than Google account.

Supported Browsers

Please access Tacticalista with the following compatible browsers

• Desktop
  • Google Chrome (Recommended)
  • Microsoft Edge
  • Safari
• iOS/iPadOS
  • Safari
• Android
  • Google Chrome

Use as PWA (Progressive Web App)

Tacticalista works as a PWA (Progressive Web App), a technology that makes web applications behave like native applications, especially on mobile devices.

How to use as a PWA

To use as a PWA, follow these steps

iOS/iPadOS

1. Go to Tacticalista's application site in Safari.
2. Select "Add to Home Screen" from the Safari menu.
3. Tap the Tacticalista application added to the Home screen to launch it.

Android

1. Go to Tacticalista's application site in Google Chrome.
2. Select "Install Application" from the upper right menu of Chrome.
3. Tap the Tacticalista application added to the Home screen to launch it.

Create a project

In the project list, choose a type on the left (for example, FOOTBALL tactical boards) and press "New" at the top right.

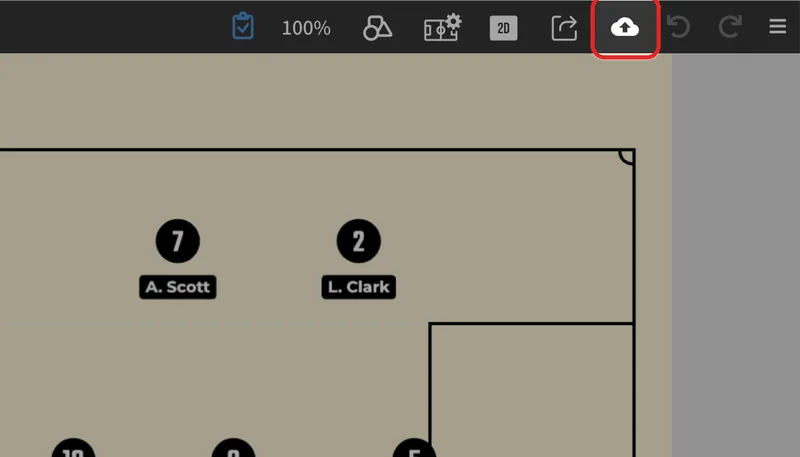

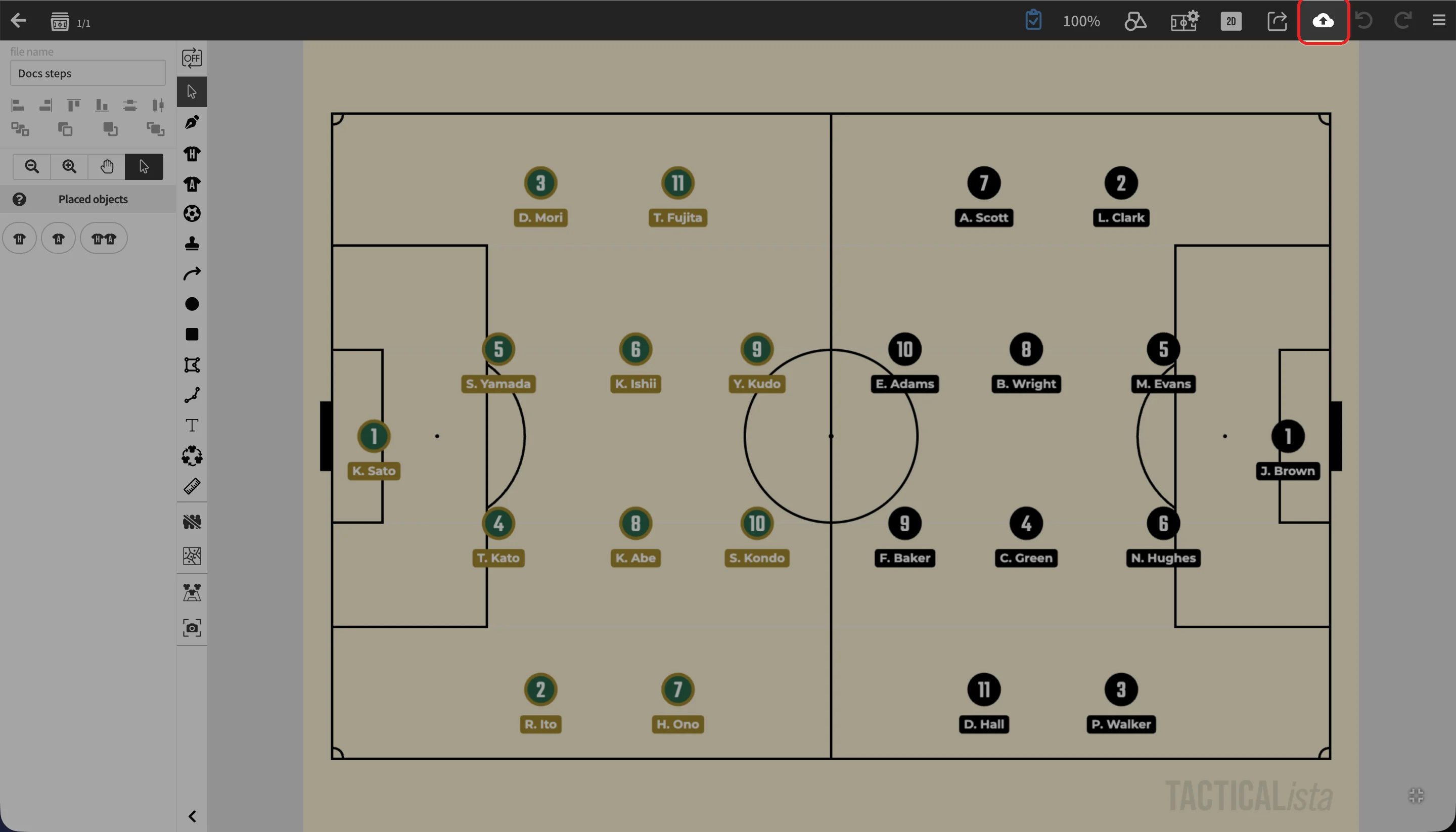

The editor opens. To save, press in the header.

Your edits are also backed up automatically on the device. → Autosave & Restore
To delete a project, select "Delete" from the upper right menu of the project in the list screen. See Project List & Tags for how to use the list.

Editor basics

• Adding objects: Choose an object in the left toolbar and click or drag on the field to place it. While an add tool is selected, the cursor shows the icon of that object. → Basics of Objects
• Continuous placement: Turn on to place the same object repeatedly. → Placing the same object repeatedly
• Zoom and pan: Ctrl + wheel, Space + drag, and the viewport tools in the toolbar zoom and move the field. A lock prevents accidental changes. → Zoom and pan
• Saving appearances: Save each object's appearance as a template and use it as the default for newly added objects (Basic plan). → Saving and reusing appearances
• Minimal mode: A display mode that hides the menus so you can focus on the field. → Minimal Mode
• Smartphones: Smartphones use the mobile editor, operated from the toolbar at the bottom of the screen. → Using the Mobile Version

Keyboard shortcuts

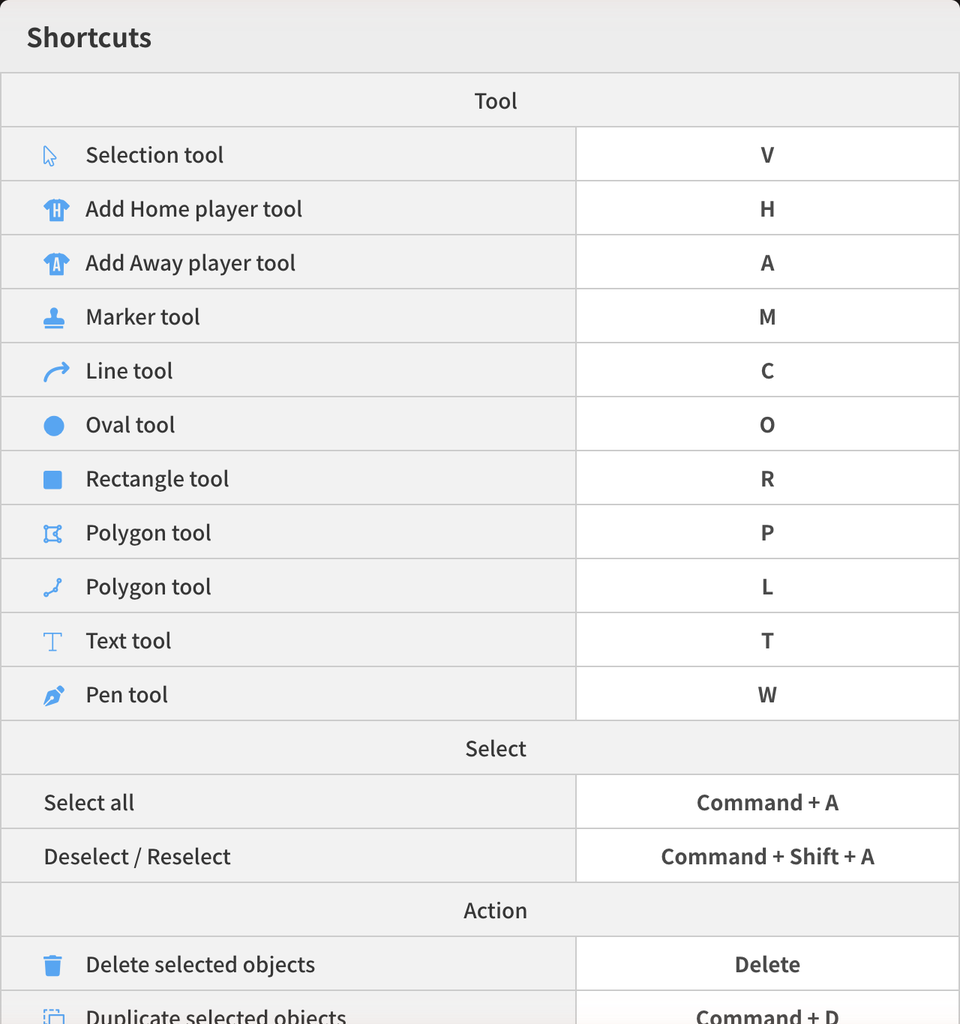

Keyboard shortcuts are available in the desktop version. On macOS, read Ctrl as ⌘. Press Ctrl+K in the editor to show the list of shortcuts.

Key	Action
V / H / A / M / C / O / R / P / L / T / W	Switch to the Select / Home / Away / Marker / Line / Oval / Rectangle / Polygon / Polyline / Text / Pen tool
D	Measure distance
Alt+H / A / M / C / O / R / P / L / T	Select all home players / away players / markers / lines / ovals / rectangles / polygons / polylines / text
Alt+Y	Select all players
Alt+V	Show or hide the Voronoi diagram
Alt+D / Alt+Shift+D	Show or hide the home / away Delaunay diagram
Ctrl+Z / Ctrl+Shift+Z / Ctrl+Y	Undo / Redo
Ctrl+S	Save
Ctrl+A	Select all
Ctrl+D	Duplicate the selected objects
Ctrl+C / Ctrl+X / Ctrl+V	Copy / Cut / Paste
Backspace / Delete	Delete the selected objects
Arrow keys (+Shift)	Move the selected objects by 1px (10px)
Ctrl+2 / Ctrl+Alt+2	Lock / unlock the selected objects
Ctrl+E	Swap the two selected players
Ctrl+P / Ctrl+L	Create a polygon / polyline from the selected players
Ctrl+O / Ctrl+Alt+O	Place a circle behind each player / surround two players with an oval
Ctrl+F / Ctrl+Shift+F	Switch the field orientation and display area to the next / previous one (except on custom blank boards)
Tab / Shift+Tab	Next / previous scene (frame in animations)
Space (hold)	Pan
Z / Z+Alt (hold)	Click to zoom in / zoom out
Esc	Cancel vertex-add mode
